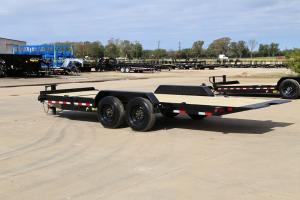

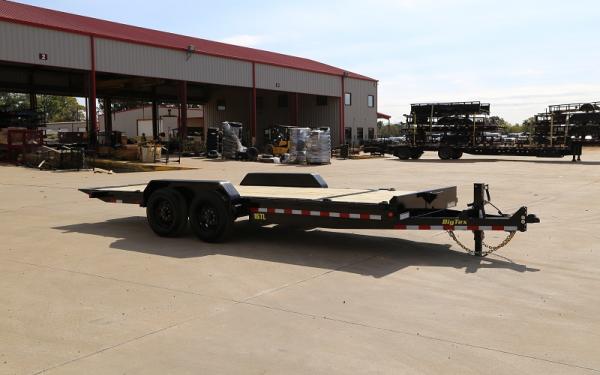

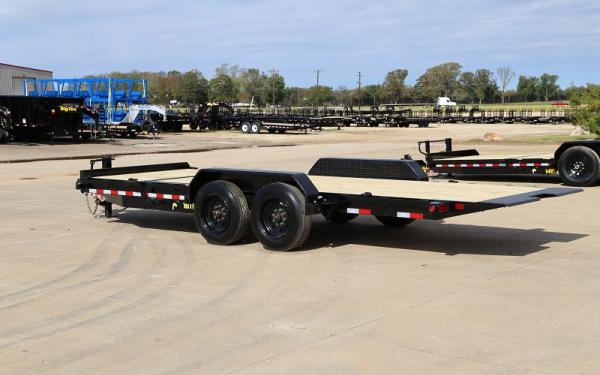

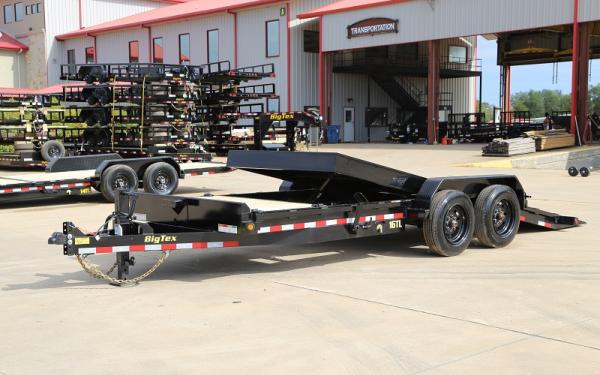

16TL-83" x 22 (16 + 6) Super Duty Tilt Bed Trailer
VIN: 039882
Call for Quote
(800) 897-9840Cuba, MO
Upgrade your productivity and versatility with the 16TL Super Duty Tilt Bed Equipment Trailer. Coming in multiple models - from 20-feet to 22-feet - this trailer features a stationary front deck and a rear tilt deck, giving you all kinds of options for loading all your low-profile equipment. And with a 12-degree tilt angle and a diamond plate knife edge, loading is a cinch. With sturdy construction and multiple ways to secure your cargo, this thing will haul for the long haul.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
16TL-83" x 22 (16 + 6) Super Duty Tilt Bed Trailer
Upgrade your productivity and versatility with the 16TL Super Duty Tilt Bed Equipment Trailer. Coming in multiple models - from 20-feet to 22-feet - this trailer features a stationary front deck and a rear tilt deck, giving you all kinds of options for loading all your low-profile equipment. And with a 12-degree tilt angle and a diamond plate knife edge, loading is a cinch. With sturdy construction and multiple ways to secure your cargo, this thing will haul for the long haul.
- Axle Config:
- Tandem
- Max Payload:
- 13360 lbs.
- External Width:
- 83"
- External Length:
- 22
- Weight:
- 4140
- Hitch Type:
- Bumper Pull
- Category:
- Equipment Trailers, Tilt Trailers
- Year:
- 2019
- Condition:
- New
- Material:
- Steel
- Open/Enclosed:
- Open
- Warranty:
- Factory Warranty Included
- Color:
- Black
- GVWR:
- 17500
- Capacity:
- 13360
Features/Specifications
Features
| Axle | (2) 8,000# Oil Bath w/ Electric Brakes |
|---|---|
| Jack | 12,000# Drop Leg Jack-Side Wind |
| Tire | ST215/75 R-17.5 Load Range H |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 8" Channel |
| Wheel | 17.5" x 6.75"; Black Mod 8 Bolt |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Coupler | Adjustable 2-5/16" 18,000# Demco EZ Latch |
| Fenders | 9" x 72" Double Broke Diamond Plate w/Back (Removable) |
| G.V.W.R. | 17,500# |
|---|---|
| Elec. Plug | 7-Way RV |
| Hitch Type | Bumper Pull |
| Suspension | Torsion |
| Tongue/Neck | 6" Channel Fold Back/Wrap Tongue, 10" I-Beam Neck on GN |
| Crossmembers | 3" Channel on 16" Centers |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| Safety Chains | 3/8" Grd. 70 w/Safety Latch Hook (2 ea) |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail |
| G.A.W.R. (Ea. Axle) | 8,000# |
Specifications
Big Tex 16TL Super Duty Tilt Bed Equipment Trailer
| Model | Description |
|---|---|
| 16TL-20 | 83" x 20' (16' + 4') Super Duty Tilt Bed Trailer |
| 16TL-20GN | 83" x 20' (16' + 4') Super Duty Gooseneck Tilt Bed Trailer |
| 16TL-22 | 83" x 22' (16' + 6') Super Duty Tilt Bed Trailer |
| 16TL-22GN | 83" x 22' (16' + 6') Super Duty Gooseneck Tilt Bed Trailer |
Dimensions
| Length | A | B | C |
|---|---|---|---|
| 20' | 249-1/2" | 130-1/2" | 119" |
| 20' GN | 249-1/2" | 130-1/2" | 119" |
| 22' | 273-1/2" | 154-1/2" | 119" |
| 22' GN | 273-1/2" | 154-1/2" | 119" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 20' | 4,760# | 12,740# | N/A |
| 20' GN | 5,560# | 11,940# | N/A |
| 22' | 5,000# | 12,500# | N/A |
| 22' GN | 5,800# | 11,700# | N/A |
Standard/Optional Equipment
Standard Equipment
- Adjustable 2-5/16" Demco Coupler in Channel
- (6) D-Rings to Secure Equipment
- Rubrail and Stake Pockets Along Sides
- (6) 5/8" Surface Mount D-Rings On Top of Frame
- Adjustable 2-5/16" Demco EZ Latch Coupler
- Fold Back/Wrap Tongue
- 12,000# Drop Leg Jack-Side Wind
- Dual Jacks & Front Toolbox on Gooseneck Model
- Fabricated Front Stop Rail
- Premium Brand 8,000# Torsion Axles
- Forward Self Adjusting Electric Brakes on All Hubs
- Cambered, Oil Bath Axles
- Complete Break-A-Way System w/Charger
- Zip Breakaway Cable
- 14 Ga. Double Square Broke Diamond Plate Fenders (Removable)
- Single-Side, EZ Pedal Locking Mechanism
- Stationary Front Deck for Added Versatility
- Unique Two Piece Main Frame
- Full 83" Wide Bed Between Fenders
- Tilt Platform is 75" Wide
- Hydraulic Dampening Cylinder w/ Valve Control
- 1/4" Diamond Plate Knife Edge on Rear
- Storage Tray in Tongue Area
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed Modular Wiring Harness
- 17/5" Radial Tires
- 5/8" Wheel Studs
- Spare Tire Mount (Front)
Optional Equipment
| Category | Description |
|---|---|
| BODY | 3/16" Diamond Plate Steel Floor |
| BODY | Blackwood Pro Rubber Infused Floor |
| BODY | Blackwood Pro- Outer Deck Only |
| CARGO CONTROL | Additional B40 5/8" D-Ring |
| CARGO CONTROL | Recessed D-Ring in Floor (Steel Floor Only) |
| COUPLER | Adjustable Pintle in Channel in Lieu of Coupler |
| TIRE/WHEEL | Spare Tire (ST215/75 R-17.5 LR-H) |
