Tandem Dual Gooseneck Dump
Call for Quote
(800) 897-9840Cuba, MO
The 25DU Tandem Dual Gooseneck Dump Trailer from Big Tex is the heavy-duty dump trailer users dream. With 4-foot sides, this unit is designed to handle any load of trash, sand or gravel, and is even equipped with ramps for loading equipment for easy transport.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
Tandem Dual Gooseneck Dump

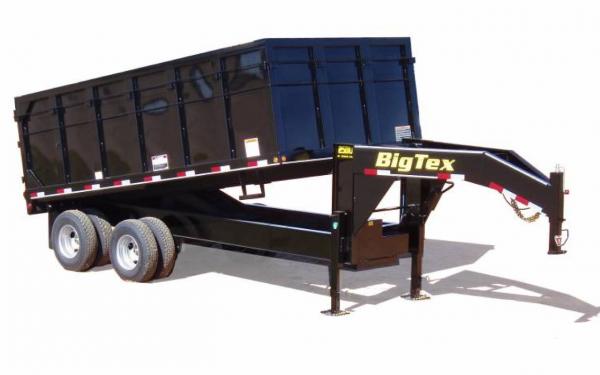

25DU Tandem Dual Gooseneck Dump Trailer
Specs:
*G.A.W.R. (Ea. Axle) 10,000lbs
*30K 2-5/16" Adjustable Crank Coupler
*3/8" Grd. 70 Safety Chains w/Safety Latch Hook (2 each)
*Two 12K Drop Leg Jacks(Bolted On)
*12" I Beam Neck
*12" X 12# I Beam Frame
*8" Channel Crossmembers
*3" Channel Bed Crossmembers
*8" Channel Bed Long Sils
*5" X 3" Angle Side Rails
*Two 10,000# Dual Wheel Oil Bath Axles w/Elec. Brakes
*Multi-Leaf Slipper Spring Suspension w/Equalizer
*ST235/80 D-16 Load Range E Tires
*16 x 6 Dual 8 Bolt Wheel
*10 Gauge Smooth Steel Floor
*D.O.T Stop, Tail, Turn & Clearance LED lights
*7-Way RV Elec. Plug
*Steel is Cleaned to Ensure a Professional Smooth Finish.
*Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
Standard Features:
*Safety Chains Attached w/Cold Rolled Eyelets
*Lockable Pump & Battery Box Between Gooseneck Uprights
*48" Sides w/ Formed Channel Supports
*J-Hooks for Tie Down
*Heavy Duty 10 Gauge Floor
*4-5/8" D-Rings Inside Bed
*Self Contained Electric Hydraulic Scissor Lift
*45 Degree Dump Angle
*5 Amp Charger
*HD Suspension
*Hoist Comparison
*Spare Tire Mount
*Modular Sealed Wiring Harness
*Complete Break-A-Way System with Charge Line
*Double Rear Gates w/Cam Latch
*Removable Header Across Rear
*Grommet Mount Sealed LED Lighting
- Availability:
- Order In
- Axle Config:
- Tandem
- Max Payload:
- 8100 lbs.
- External Width:
- 92"
- External Length:
- 18'
- Hitch Type:
- Gooseneck
- Category:
- Dump Trailers
- Year:
- 2018
- Condition:
- New
- Material:
- Steel
- Color:
- Black
- GVWR:
- 25900
- Capacity:
- 8100
Features/Specifications
Features
| Axle | (2) 10,000# Dual Wheel Oil Bath Electric Brakes |
|---|---|
| Jack | Dual 12,000# Side Wind Drop Legs |
| Neck | 12" I-Beam |
| Tire | ST235/80 R-16 Load Range E Dual |
| Floor | 10 Gauge Smooth Steel |
| Wheel | 16" x 6"; Black Dual Wheel 8 Bolt |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Coupler | 2-5/16" Square Adjustable Crank Type (30K) |
| Fenders | Double Square Broke Diamond Plate |
| G.V.W.R. | 25,900# |
| Elec. Plug | 7-Way RV |
|---|---|
| Hitch Type | Gooseneck |
| Main Frame | 12" x 16# I-Beam |
| Suspension | Heavy Duty 30,000# Adjustable |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| Safety Chains | 3/8" Grd. 70 w/Safety Latch Hook (2 each) |
| Dump Body Sides | 48" Tall Sides (12 Gauge) |
| Dump Body Top Rail | 4" x 2" Rectangular Tubing |
| G.A.W.R. (Ea. Axle) | 10,000# |
| Dump Body Crossmembers | 3" Channel, 16" Centers |
Specifications
Big Tex 25DU Tandem Dual Gooseneck Dump Trailer
| Model | Description |
|---|---|
| 25DU-20 | 92" x 20' Tandem Dual Gooseneck Dump |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 20' | 8,070# | 17,830# | 23.70 Cubic Yards |
Standard/Optional Equipment
Standard Equipment
- Square, Adjustable Crank 2-5/16" Gooseneck Coupler (30K)
- Dual 12,000# Drop-Leg Jacks (Side Wind)
- Lockable Pump & Battery Box Mounted Between Jacks
- 48" Tall, 12 Gauge Sides w/Formed Channel Supports
- 10 Gauge Steel Floor
- Fully Formed Tarp Shroud on Front
- J-Hooks on Sides & Rear for Tarp Control
- Stakepockets Along Sides
- Self Contained Electric/Hydraulic Scissor Hoist
- Power Up/Gravity Down Hydraulic Pump
- 12V Interstate Deep Cycle Battery
- 110V On-Board Battery Charger (5 Amp)
- Premium Brand Axles
- Cambered, Oil Bath Axles
- Forward Self Adjusting Electric Brakes on All Hubs
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed, Modular Wiring Harness
- Complete Break-A-Way System
- Zip Breakaway Cable
- 4" x 2" Rec. Tubing Top Rail on Dump Bed
- Double Rear Doors
- (4) 5/8" D-Rings Inside Bed to Secure Equipment
- Mudflaps
- Spare Tire Mount
- Radial Tires
- Spare Tire & Wheel - Standard Equipped
Optional Equipment
| Category | Description |
|---|---|
| AXLE | 12,000# Axle Upgrade (GVWR Remains 25,900#) |
| BODY | Removable Deck on the Neck-Bolt On (8 W x 6 L) |
| CARGO CONTROL | Crank Style Roll Tarp |
| CARGO CONTROL | Industrial Roll Tarp w/Side Flaps |
| JACK | Dual 2-Speed Landing Gear |
| JACKS | Dual Elec/Hyd 12,000# Jacks by Stillwell |
| POWER | 5 Watt Solar Charger |
| POWER | Wireless Remote |
| RAMPS | 8 Slide In Ramps |
| TIRE/WHEEL | Tire Updgrade (ST215/75 R-17.5 LR-H Dual) Includes Spare |
| TIRE/WHEEL | Tire Upgrade (ST235/85 R-16 LR-G Dual) Includes Spare |
