Tandem Axle Low Profile Extra Wide Dump
Call for Quote
(800) 897-9840Cuba, MO
The 14LX Tandem Axle Low Profile Extra Wide Dump Trailer from Big Tex is the industry leader in its class across the country. This unit combines a tube frame and heavy duty cross members in addition to the most complete box unit, providing durability you can count on.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
Tandem Axle Low Profile Extra Wide Dump

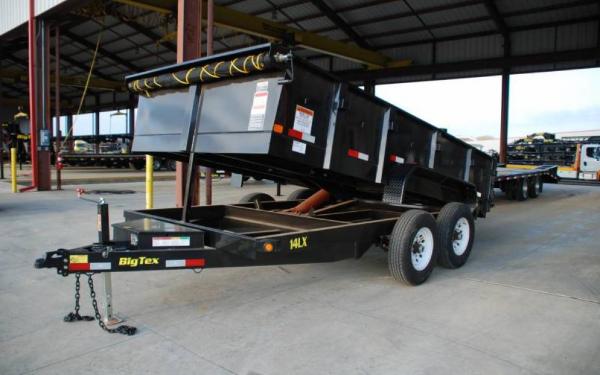

14LX Tandem Axle Low Profile Extra Wide Dump Trailer
Specs:
*G.A.W.R. (Ea. Axle) 7,000lbs
*2-5/16" Adjustable Forged Coupler
*3/8" Grd. 70 Safety Chains w/Safety Latch Hook (2 each)
*7K TW Drop Leg Jacks,
*6" Channel Fold Back Tongue
*6" X 3" Tube on 14'; 8"x3" Tube on 16'
*6" Channel Crossmembers
*3" Channel Bed Crossmembers
*3" Channel Bed Long Sils
*6-1/2" Formed Angle Bed Side Rails
*Double Square Broke Diamond Plate Fenders
*Two 7,000# EZ Lube Axles w/Elec. Brake
*Multi-Leaf Slipper Spring Suspension w/Equalizer
*ST235/80 R-16 Load Range E Tires
*16 x 6 HD White Modular 8 Bolt Wheel
*10 Gauge Smooth Steel Floor
*D.O.T Stop, Tail, Turn & Clearance LED lights
*7-Way RV Elec. Plug
*Steel is Cleaned to Ensure a Professional Smooth Finish.
*Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
*LED Lighting
Standard Features:
*Safety Chains Attached w/Cold Rolled Eyelets
*Lockable Pump & Battery Box Mounted in Front of Bed
*Modular Sealed Wiring Harness
*24", 12 Ga. Sides w/Formed Channel Supports
*10 Ga. Floor
*J-Hooks for Tie Downs
*Stake Pockets
*Fully Formed Shroudd for Tarp
*4-5/8" D-Rings Inside Bed
*Fully Self Contained Electric Hydraulic Scissor Lift
*45 Degree Dump Angle
*5 Amp Charger
*Cambered EZ Lube Axles w/ Electric Brakes
*Complete Break-A-Way System w/Charge Line
*Grommet Mount Sealed Lighting
*Combo Gate
*Hoist Comparison
- Availability:
- Order In
- Axle Config:
- Tandem
- Max Payload:
- 4140 lbs.
- External Width:
- 83"
- External Length:
- 14'
- Hitch Type:
- Bumper Pull
- Category:
- Dump Trailers
- Year:
- 2018
- Condition:
- New
- Material:
- Steel
- Color:
- Black
- GVWR:
- 14000
- Capacity:
- 4140
Features/Specifications
Features
| Axle | (2) 7,000# EZ Lube w/Elec. Brakes |
|---|---|
| Jack | 8,000# Top Wind Drop Leg (Bolted On) |
| Tire | ST235/80 R-16 Load Range E |
| Floor | 10 Gauge Smooth Steel |
| Frame | 6" x 3" Rectangular Tubing |
| Wheel | 16" x 6"; HD Black Mod 8 Bolt |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 6" Channel Fold Back/Wrap |
| Coupler | Adjustable 2-5/16" 18,000# Demco EZ Latch |
| Fenders | 9" x 72" 14Ga. Diamond Plate Double Square Broke |
| G.V.W.R. | 14,000# |
|---|---|
| Elec. Plug | 7-Way RV |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Spring w/Equalizer |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| Safety Chains | 3/8" Grd. 70 w/Safety Latch Hook (2 each) |
| Dump Body Sides | 24" Tall Sides (12 Gauge) |
| Bed Crossmembers | 3" Channel, 16" Centers |
| Dump Body Top Rail | 2" x 2" Square Tubing |
| G.A.W.R. (Ea. Axle) | 7,000# |
Specifications
Big Tex 14LX Heavy Duty Tandem Axle Extra Wide Dump Trailer
| Model | Description |
|---|---|
| 14LX-12 | 83" x 12' Heavy Duty Tandem Axle Extra Wide Dump |
| 14LX-14 | 83" x 14' Heavy Duty Tandem Axle Extra Wide Dump |
| 14LX-16 | 83" x 16' Heavy Duty Tandem Axle Extra Wide Dump |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 12' | 3,570# | 10,430# | 6.2 Cubic Yards |
| 14' | 3,960# | 10,040# | 7.2 Cubic Yards |
| 16' | 4,250# | 9,750# | 8.3 Cubic Yards |
Standard/Optional Equipment
Standard Equipment
- Adjustable 2-5/16" 18,000# Demco EZ Latch
- 8,000# Top Wind Drop Leg Jack
- Lockable Pump & Battery Box Mounted in Front of Bed
- 24" Tall, 12 Gauge Sides w/Formed Channel Supports
- 10 Gauge Steel Floor
- Fully formed Tarp Shroud on Front
- Crank Style Roll Tarp- Standard Equipped
- Tarp Rod Included to Secure Tarp on Rear
- J-Hooks on Sides & Rear for Tarp Control
- Stakepockets Along Sides
- Self Contained Electric/Hydraulic Scissor Hoist
- Power Up/Power Down Hydraulic Pump
- 12V Interstate Deep Cycle Battery
- 110V On-Board Battery Charger
- Dexter Brand Axles
- Cambered Axles w/EZ Lube Hubs
- Nev-R0Adjust Electric Brakes on All Hubs
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed, Modular Wiring harness
- Complete Break-A-Way System
- Zip Breakaway Bacle
- Diamond Plate Fenders
- 2" Square Tubing Top Rail on Dump Bed
- Combo Gate (Barn Doors & Spreader Gate)
- (4) 1/2" D-Rings Inside Bed to Secure Equipment
- Spare Tire Mount
- Radial Tires
Optional Equipment
| Category | Description |
|---|---|
| BODY | 24" Expanded Metal Side Extensions |
| BODY | 3 Solid Sheet Metal Sides |
| BODY | 4 Solid Sheet Metal Sides |
| BRAKES | Hydraulic Surge Brakes on Both Axles |
| COUPLER | Adjustable Pintle in Channel ILO Coupler |
| JACK | 12,000# Top Wind Drop Leg Jack |
| JACK | 7,000# Elec/Hyd. Jack by Stillwell |
| POWER | 5 Watt Solar Charger |
| POWER | Wireless Remote |
| RAMPS | 7 Slide In Ramp Package |
| TIRE/WHEEL | Spare Tire (ST235/80 R-16 LR-E) |
| TIRE/WHEEL | Spare Tire Upgrade (ST235/85 R-16 LR-G) |
| TIRE/WHEEL | Tire Upgrade (ST235/85 R-16 LR-G) |
