Tandem Axle Low Profile Extra Wide Dump Trailer
Call for Quote
(800) 897-9840Cuba, MO
The 12LX from Big Tex Trailers is a solid choice for customers looking for a medium duty, medium capacity dump trailer. This trailer is lockable pump box, Interstate Battery, interior D rings to tie down load, LED lights, and hydraulic scissor lift. Great for medium loads around the farm, this trailer has a loading capacity of 8,320 lbs.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview

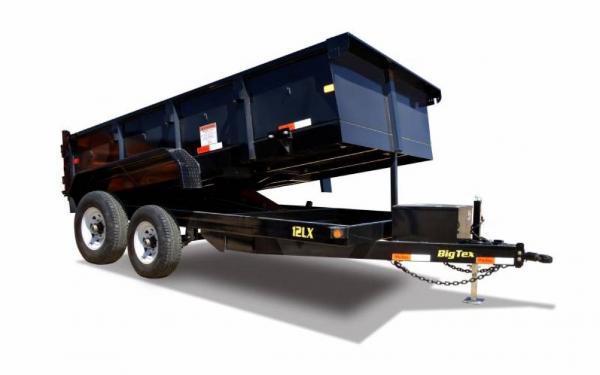

Tandem Axle Low Profile Extra Wide Dump Trailer
12LX Tandem Axle Low Profile Extra Wide Dump
Specs:
*G.A.W.R. (Ea. Axle) 6,000lbs
*2-5/16" Stamped A-Frame Coupler
*1/4" Grd. 70 Safety Chains w/Safety Latch Hook (2 each)
*7K TW Drop Leg Jacks(Bolted On)
*6" Channel Tongue
*6" X 3" Rectangular Tubing Frame
*6" Channel Crossmembers
*3" Channel Bed Crossmembers
*3" Channel Bed Long Sils
*6-1/2" Formed Angle Bed Side Rails
*Double Square Broke Diamond Plate Fenders
*Two 6,000lb EZ Lube Axles w/Elec. Brakes
*Multi-Leaf Slipper Spring Suspension w/Equalizer
*ST235/80 R-16 Load Range E Tires
*16 x 6 HD White Modular 8 Bolt Wheel
*10 Gauge Smooth Steel Floor
*D.O.T Stop, Tail, Turn & Clearance LED lights
*7-Way RV Elec. Plug
*Steel is Cleaned to Ensure a Professional Smooth Finish.
*Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
Standard Features:
*Safety Chains Attached w/Cold Rolled Eyelets
*Lockable Pump & Battery Box Mounted in Front of Bed
*Modular Sealed Wiring Harness
*24", 12 Ga. Sides w/Formed Channel Supports
*Modular Sealed Wiring Harness
*10 Gauge Floor
*J-Hooks for Tie Downs
*Stake Pockets
*Fully Formed Shroud for Tarp
*4-5/8" D-Rings Inside Bed
*Fully Self-Contained Electric Hydraulic Scissor Lift
*45 Degree Dump Angle
*Spare Tire Mount
*Cambered EZ Lube Axles w/Electric Brakes
*Complete Break-A-Way System w/Charge Line
*Grommet Mount Sealed LED Lighting
*Combo Gate
*Hoist Comparison
- Availability:
- Order In
- Axle Config:
- Tandem
- Max Payload:
- 3680 lbs.
- External Width:
- 83"
- External Length:
- 12'
- Hitch Type:
- Bumper Pull
- Category:
- Dump Trailers
- Year:
- 2018
- Condition:
- New
- Material:
- Steel
- Color:
- Black
- GVWR:
- 12000
- Capacity:
- 3680
Features/Specifications
Features
| Axle | (2) 6,000# EZ Lube w/Elec. Brakes |
|---|---|
| Jack | 7,000# Top Wind Drop Leg (Bolted On) |
| Tire | ST235/80 R-16 Load Range E |
| Floor | 10 Gauge Smooth Steel |
| Frame | 6" x 3" Rectangular Tubing |
| Wheel | 16" x 6"; Black Spoke 8 Bolt |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 6" Channel |
| Coupler | 2-5/16" Adjustable Forged |
| Fenders | 9" x 72" Double Square Broke Diamond Plate |
| G.V.W.R. | 12,000# |
|---|---|
| Elec. Plug | 7-Way RV |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Spring w/Equalizer |
| Crossmembers | 6" Channel |
| Bed Long Sils | 3" Channel |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| Safety Chains | 1/4" Grd. 70 w/Safety Latch Hook (2 each) |
| Bed Side Rails | 6-1/2" Formed Angle |
| Bed Crossmembers | 3" Channel |
| G.A.W.R. (Ea. Axle) | 6,000# |
Specifications
Big Tex 12LX Standard Duty Tandem Axle Extra Wide Dump Trailer
| Model | Description |
|---|---|
| 12LX-12 | 83" x 12' Standard Duty Tandem Axle Extra Wide Dump |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 12' | 3,570# | 8,430# | 6.2 Cubic Yards |
Standard/Optional Equipment
Standard Equipment
- Lockable Pump & Battery Box Mounted in Front of Bed
- J-Hooks for Tie Down
- Fully Formed Shroud for Tarp
- Self Contained Electric/Hydraulic Scissor Hoist
- 45 Degree Dump Angle
- Combo Style Rear Gate
- 24", 12 Ga. Sides
- 10 Ga. Floor
- Stake Pockets (Sides)
- EZ Lube Hubs
- Dexter Brand Axles
- (4) 5/8" D-Rings Inside Bed
- Nev-R-Adjust Electric Brakes
- Cambered Axles
- Spare Tire Mount
- Diamond Plate Fenders
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Protected Wiring
- Complete Break-A-Way System w/Charger
- 2" Square Tubing Top Rail
- Radial Tires
Optional Equipment
| Category | Description |
|---|---|
| BODY | 24" Expanded Metal Side Extensions (12) |
| BODY | 3 Solid Sheet Metal Sides |
| BODY | 4 Solid Sheet Metal Sides |
| BRAKES | Hydraulic Surge Brakes on Both Axles |
| CARGO CONTROL | Crank Style Roll Tarp |
| COUPLER | Adjustable Pintle in Channel ILO Coupler |
| JACK | 12,000# Top Wind Drop Leg Jack |
| POWER | 110V Charger |
| POWER | 5 Watt Solar Charger |
| POWER | Wireless Remote |
| RAMPS | 7 Slide In Ramps |
| TIRE/WHEEL | Spare Tire (ST235/80 R-16 LR-E) |
