Tandem Axle Low Profile Extra Wide Dump Trailer
Call for Quote
(800) 897-9840Cuba, MO

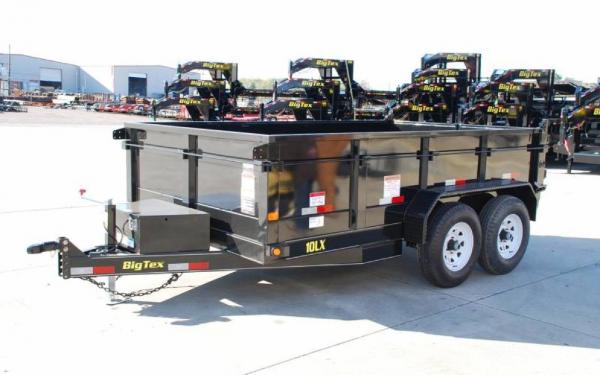

The 10LX from Big Tex Trailers is a medium-duty, well equipped dump trailer. This unit has a lockable pump box, Interstate Battery, interior D rings for easy tie-downs, LED lights and a hydraulic scissor lift. Optimized for medium loads around the farm, with a loading capacity of 6,320 lbs, the 10LX is a reliable workhorse.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
Tandem Axle Low Profile Extra Wide Dump Trailer
10LX Tandem Axle Low Profile Extra Wide Dump
Specs:
*G.A.W.R. (Ea. Axle) 5,200lbs
*2-5/16" Adjustable Forged Coupler
*1/4" Grd. 70 Safety Chains w/Safety Latch Hook (2 each)
*7K TW Drop Leg Jacks(Bolted On)
*6" Channel Tongue
*6" x 2" Rectangular Tubing Frame
*4" 13lb I-Beam Crossmembers
*3" Channel Bed Crossmembers
*3" Channel Bed Long Sils
*6-1/2" Formed Angle Bed Side Rails
*Double Square Broke Diamond Plate Fenders
*Two 5,200# EZ Lube Axles w/Elec. Brakes
*Multi-Leaf Slipper Spring Suspension w/Equalizer
*ST235/80 D-16 Load Range E Tires
*16 x 6 HD White Spoke 6 Bolt Wheel
*10 Gauge Smooth Steel Floor
*D.O.T Stop, Tail, Turn & Clearance LED lights
*7-Way RV Elec. Plug
*Steel is Cleaned to Ensure a Professional Smooth Finish.
*Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
Standard Features:
*Safety Chains Attached w/Cold Rolled Eyelets
*Lockable Pump & Battery Box Mounted in Front of Bed
*Modular Sealed Wiring Harness
*24", 12 Ga. Sides w/Formed Channel Supports
*Modular Sealed Wiring Harness
*10 Ga. Floor
*J-Hooks for Tie Downs
*Stake Pockets
*Fully Formed Shroud for Tarp
*4-5/8" D-Rings Inside Bed
*Fully Self Contained Electric Hydraulic Scissor Lift
*45 Degree Dump Angle
*Spare Tire Mount
*Cambered EZ Lube Axles w/Electric Brakes
*Complete Break-A-Way System w/Charge Line
*Grommet Mount Sealed LED Lighting
*Combo Gate
*Hoist Comparison
- Availability:
- Order In
- Axle Config:
- Tandem
- External Width:
- 83"
- External Length:
- 12'
- Hitch Type:
- Bumper Pull
- Category:
- Dump Trailers
- Year:
- 2018
- Condition:
- New
- Material:
- Steel
- Color:
- Black
- GVWR:
- 9990
Features/Specifications
Features
| Axle | (2) 5,200# Quick Lubricating w/Elec. Brakes |
|---|---|
| Jack | 8,000# Top Wind Drop Leg |
| Tire | ST235/80 R-16 Load Range E |
| Floor | 10 Gauge Smooth Steel |
| Frame | 6" x 2" Rectangular Tubing |
| Wheel | 16" x 6"; Black Mod 6 Bolt |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 6" Channel |
| Coupler | 2-5/16" Adjustable Forged |
| Fenders | 9" x 72" 14 Ga. Diamond Plate Double Square Broke |
| G.V.W.R. | 9,990# |
|---|---|
| Elec. Plug | 7-Way RV |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Spring w/Equalizer |
| Crossmembers | 8 Channel |
| Bed Long Sils | 3" Channel |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| Safety Chains | 1/4" Grd. 70 w/Safety Latch Hook (2 each) |
| Bed Side Rails | 6 1/2" Formed Angle |
| Bed Crossmembers | 3" Channel, 16" Centers |
| G.A.W.R. (Ea. Axle) | 5,200# |
Specifications

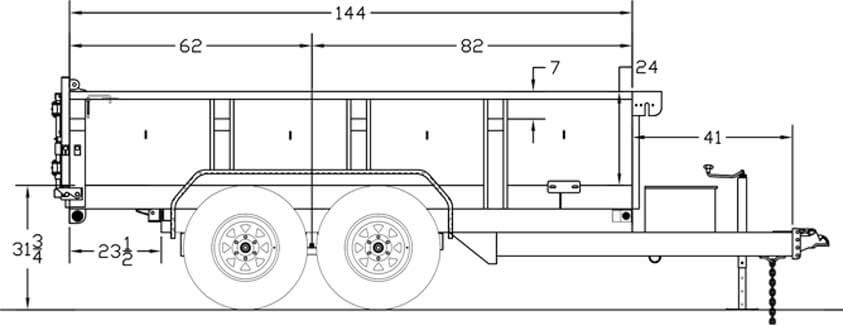

Big Tex 10LX Pro Series Tandem Axle Extra Wide Dump Trailer
| Model | Description |
|---|---|
| 10LX-12 | 83" x 12' Pro Series Tandem Axle Dump |
| 10LX-10 | 83” x 10’ Pro Series Tandem Axle Dump |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 12' | 3,500# | 6,490# | 6.1 Cubic Yards |
| 10' | 3,160# | 6,830# | N/A |
Standard/Optional Equipment
Standard Equipment
- Adjustable 2-5/16" Forged Coupler
- 8,000# Top Wind Drop Leg Jack
- Lockable Pump & Battery Box Mounted in Front of Bed
- 24" Tall, 12 Gauge Sides w/Formed Channel Supports
- 10 Gauge Steel Floor
- Tarp Mounting Brackets on Front of Bed
- J-Hooks on Sides & Rear for Tarp Control
- Stakepockets Along Sides
- Self Contained Electric/Hydraulic Scissor Hoist
- Power Up/Gravity Down Hydraulic Pump
- 12V Interstate Deep Cycle Battery
- 110V On-Board Battery Charger (5 Amp)
- Premium Brand Axles
- Cambered Axles w/Quick Lubricating Hubs
- Forward Self Adjusting Electric Brakes on All Hubs
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed, Modular Wiring Harness
- Complete Break-A-Way System
- Diamond Plate Fenders
- 2" Square Tubing Top Rail on Dump Bed
- Combo Gate (Barn Doors & Spreader Gate)
- (4) 1/2" D-Rings Inside Bed to Secure Equipment
- Spare Tire Mount
- Radial Tires
Optional Equipment
| Category | Description |
|---|---|
| BODY | 24" Expanded Metal Side Extensions |
| BODY | 3 Solid Sheet Metal Sides |
| BODY | 4 Solid Sheet Metal Sides |
| CARGO CONTROL | Crank Style Roll Tarp |
| COUPLER | Adjustable Pintle in Channel ILO Coupler |
| POWER | 5 Watt Solar Charger |
| POWER | Wireless Remote |
| RAMPS | 6.5 Slide In Ramp Package |
| TIRE/WHEEL | Spare Tire (ST235/80 R-16 LR-E) |
