Tandem Axle Single Ram Dump
Call for Quote
(800) 897-9840Cuba, MO

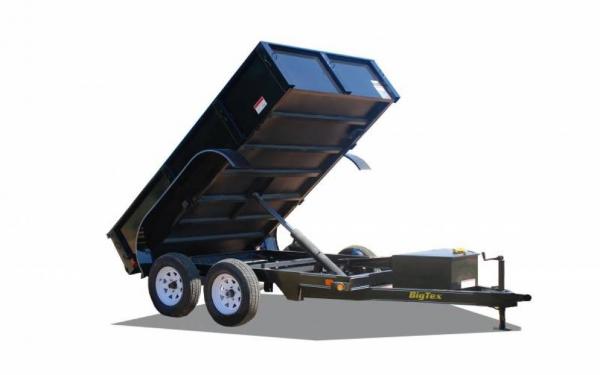

The 70SR from Big Tex is a light-duty but durable dump trailer. This unit is equipped with a straight ram hydraulic lifting system, Interstate battery, locking pump box and LED lights. Have confidence when hauling mulch, dirt, gravel and other light loads around the home or farm.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
Tandem Axle Single Ram Dump
70SR Tandem Axle Single Ram Dump
Specs:
*G.A.W.R. (Ea. Axle) 3,500lbs
*2-5/16 Stamped A-Frame Coupler
*1/4 Grd. 70 Safety Chains w/Safety Latch Hook (2 each)
*2K Top Wind Jacks (Bolted On)
*5" Channel Tongue
*5" Channel Frame
*6" Channel Crossmembers
*2" Bed Crossmembers
*3" x 2" Bed Side Rails
*9 x 72 DSB Diamond Plate Fenders
*Two 3,500lb Axels EZ Lube w/Elec. Brakes
*Multi-Leaf Spring Suspension w/Equalizer
*ST205/75-15 Load Range C Tires
*15 x 5 White Spoke 5 Bolt Wheel
*16 Gauge Smooth Steel Floor
*LED D.O.T. Stop, Tail, Turn & Clearance lights
*7-Way RV Elec. Plug
*Steel is Cleaned to Ensure a Professional Smooth Finish
*Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Standard Features:
*Safety Chains Attached w/Cold Rolled Eyelets
*Lockable Pump & Battery Box Mounted in Front of Bed
*20, 16 Ga. Sides w/Formed Channel Supports
*J-Hooks for Tie Down
*Tarp Brackets
*Single Cylinder Lift
*45 Degree Dump Angle
*Cambered EZ Lube Axles w/Electric Brake on Each
*Complete Break-A-Way System w/Charge Line
*Grommet Mount Sealed LED Lighting
*1 Piece 2 Way Style Rear Gate
*Hoist Comparison
--FULL--
- Availability:
- Order In
- Axle Config:
- Tandem
- Max Payload:
- 5000 lbs.
- External Width:
- 72"
- External Length:
- 10'
- Hitch Type:
- Bumper Pull
- Category:
- Dump Trailers
- Year:
- 2018
- Condition:
- New
- Material:
- Steel
- Color:
- Black
- GVWR:
- 7000
- Capacity:
- 5000
Features/Specifications
Features
| Axle | (2) 3,500# Quick Lubricating w/Elec. Brakes |
|---|---|
| Jack | 2,000# Top Wind (Bolted On) |
| Tire | ST205/75-15 Load Range C |
| Floor | 16 Gauge Smooth Steel |
| Frame | 5" Channel |
| Wheel | 15" x 5"; Black Spoke 5 on 5 Bolt Pattern |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 5" Channel |
| Coupler | 2-5/16" Stamped A-Frame |
| Fenders | 9" x 72" 14 Ga. Diamond Plate Double Square Broke |
| G.V.W.R. | 7,000# |
|---|---|
| Elec. Plug | 7-Way RV |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Spring w/Equalizer |
| Crossmembers | 2" Channel 17" Centers |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| Safety Chains | 1/4" Grd. 70 w/Safety Latch Hook (2 each) |
| Bed Side Rails | Formed, Integrated with sides |
| Bed Crossmembers | 20" Tall Sides (16 Gauge) |
| G.A.W.R. (Ea. Axle) | 3,500# |
Specifications
Big Tex 70SR Tandem Axle Single Ram Dump Trailer
| Model | Description |
|---|---|
| 70SR-10-5W | 60" x 10' Tandem Axle Single Ram Dump |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 10'-5W | 1,730# | 5,270# | 3.0 Cubic Yards |
Standard/Optional Equipment
Standard Equipment
- Lockable Pump & Battery Box Mounted in Front of Bed
- 20", 16 Ga. Sides w/Formed Channel Supports
- Tarp Mounting Brackets on Front of Bed
- J-Hooks on Sides & Rear for Tarp Control
- Stakepockets Along Sides
- Self Contained Electric/Hydraulic Single Cylinder Lift
- Power Up/Power Down Hydraulic Pump
- 12V Interstate Deep Cycle Battery
- Quick Lubricating Hubs
- 110V On-Board Battery Charger (5 Amp)
- Premium Brand Axles
- Cambered Axles
- Forward Self Adjusting Electric Brakes
- Diamond Plate Fenders
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed, Modular Wiring Harness
- Removable Sand Foot on Jack
- Complete Break-A-Way System
- Double Rear Doors
- Radial Tirles
Optional Equipment
| Category | Description |
|---|---|
| CARGO CONTROL | Crank Style Roll Tarp |
| TIRE/WHEEL | Spare Tire (ST205/75 R-15 LR-C) |
